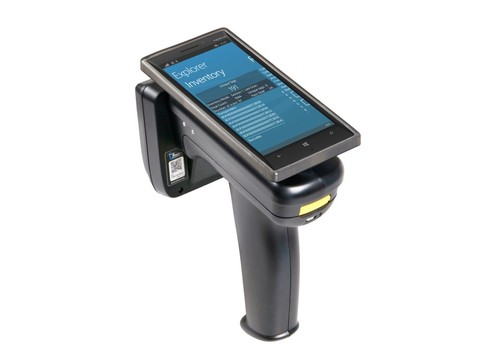

TSL 1128 Bluetooth UHF RFID Reader
> 詳細資料 <
直銷價: .
1128 Bluetooth UHF RFID Reader Unit
UHF Antenna and Trigger Handle
Battery
Battery Cover
Micro USB Cable
USB Charger

TSL 1128 Bluetooth UHF RFID ReaderProduct code:1128-BT-UHF

ELECTRICAL:

Air Interface Protocol:
EPCglobal UHF Class 1 Gen 2 (ISO 18000-6C)
Operating Frequency:
US 902-928 MHz or EU 865-868 MHz, region dependent
Antenna Type:
Circular polarized
Max Read Distance:
Up to 4m (13 feet)
Scanner:
2D Imager (Optional)
Operating System:
iOS, Windows Mobile, Windows Phone 8, WinCE, WIndows XP, 7, 8, Android
Data Interface:
USB, Bluetooth
Memory/Expansion Memory:
Up to 32 GB Micro SD/SDHD card
Power Source:
Removable, rechargeable 4.2 volt lithium polymer 2200 mAh battery
Camera:
N/A
MECHANICAL:

Dimensions:
6.2 x 3.0 x 6.6 in (160 x 77 x 169 mm)
Weight:
0.83 lbs (380 g)
ENVIRONMENT:

IP Rating:
IP 54
Operating Temperature:
-20° to +60°C
APPLICATION INTERFACE:

Host API:
ASCII
Demo Software: SmartWedge

歡迎至電 (852) 2398-1908或電郵 enquiry@insightHK.com 查詢及訂購
Impinj Xarray Gateway RFID Reader
> 詳細資料 <
直銷價: .
Designed for large-scale item-level applications in retail, healthcare and manufacturing, the Impinj xArray Gateway RFID Reader delivers wide-area monitoring, locationing and tag direction capabilities of RFID tagged items within a facility or across a gl

Impinj Xarray Gateway RFID ReaderProduct code:IPJ-REV-R680

READER:

Air Interface Protocol:
EPCglobal UHF Class 1 Gen 2 (ISO 18000-6C)
Operating Frequency:
UHF 860- 960 MHz, region dependent
Transmit Power:
+10.0 to +31.5 dBm (PoE); +10.0 to +32.5 dBm (external universal power supply)
Max Receive Sensitivity:
-82 dBm
Max Read Distance:
Up to 40 ft diameter at 15 ft height; Up to 33 ft diameter at 10 ft. height
Max Read Rate:
Not published
Coverage Area per xArray:
1,500 sq. ft. (139m2) with Monza R6 based tags*, coverage area may be less with other RFID tags
Data Interface:
Octane SDK; EPCglobal Low Level Reader Protocol (LLRP) v1.0.1
Power Source (PoE):
IEEE 802.3af
Power Source (External DC Power):
Listed/Certified power supply, marked LPS or Class 2, with 24Vdc output, rated minimum 2.5A
PORTAL:

Dimensions:
18.4 x 18.4 x 3.0 in (467.4 x 467.4 x 76.2 mm)
Weight:
17.8 lbs (8074 g)
Operating Temperature:
-20 °C to +50 °C
ANTENNAS:

Effective Field of View:
±45° from 0° (directly underneath the xArray)
Polarization:
Dual linear phased array antenna with 52 beam states
Mounting Options:Vesa 200 or Direct attach (250 mm x 275 mm Bolt Pattern)

歡迎至電 (852) 2398-1908或電郵 enquiry@insightHK.com 查詢及訂購
