> Details <

Discounted Price: .

The Alien ALR-9680 is a commercial-grade UHF RFID reader that provides 4-port flexibility and Alien’s industry leading ease-of-use and reader “intelligence.”

Alien ALR-9680 RFID Reader (4-port)Product code:ALR-9680

ELECTRICAL:

Air Interface Protocol:

EPCglobal UHF Class 1 Gen 2 (ISO 18000-6C)

Operating Frequency:

US (902.75-927.25 MHz)

Transmit Power:

4 watts EIRP

Max Receive Sensitivity:

Not Published

Max Read Distance:

Not Published

Max Read Rate:

Not Published

Data Interface:

RS-232, LAN TCP/IP

GPIO:

2 inputs, 2 outputs, TTL compatible

Power Source:

POE, AC/DC power supply 24 VDC

MECHANICAL:

Antenna Ports:

4 RP-TNC female ports (connects to RP-TNC male)

Dimensions:

7.25 x 9.50 x 1.25 in (184.15 x 241.3 x 31.75 mm)

Weight:

2 lbs (907.19 g)

ENVIRONMENT:

IP Rating:

Not Published

Operating Temperature:

-20°C to +55°C

APPLICATION INTERFACE:

Host API:

Java, .NET, Ruby APIs

Demo Software: Alien Gateway

Pls call (852) 2398-1908 or email to enquiry@insightHK.com for details

> Details <

Discounted Price: .

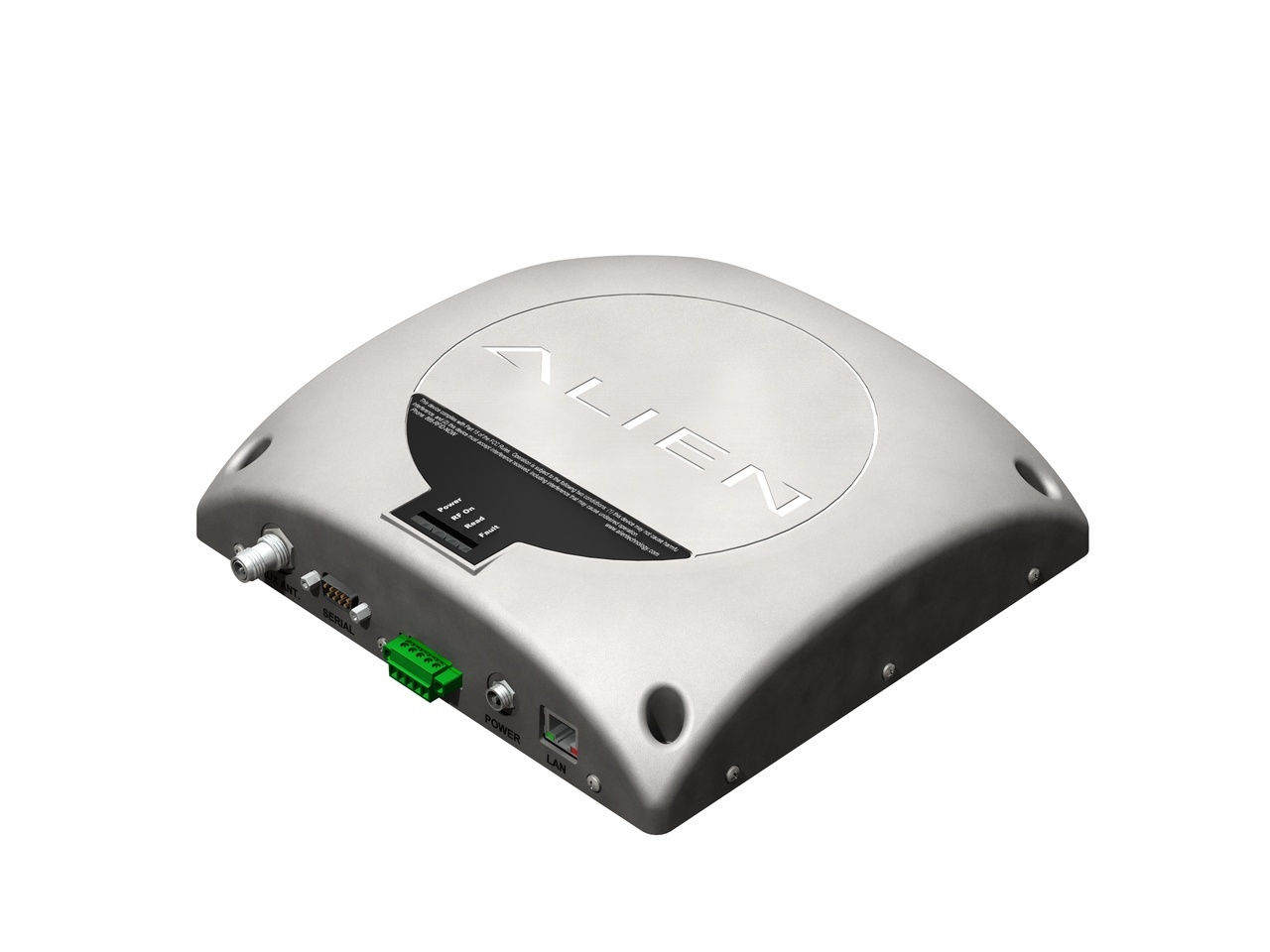

The Alien 9650 Gen 2 RFID Reader with Integrated Antenna (ALR-9650) is the ideal solution for single and two-antenna applications. The reader electronics and a high-performance, circularly polarized antenna reside in a single package, resulting in a simpl

Alien ALR-9650 Integrated RFID ReaderProduct code:ALR-9650

ELECTRICAL:

Air Interface Protocol:

EPCglobal UHF Class 1 Gen 2 (ISO 18000-6C)

Operating Frequency:

FCC 902-928; region dependent

Max Transmit Power:

+30 dBm

Max Receive Sensitivity:

-60dB

Max Read Distance:

Not Published

Max Read Rate:

Not Published

Data Interface:

Ethernet, RS-232

GPIO:

2 inputs, 2 outputs, TTL compatible

Power Source:

24 VDC supplied via an AC/DC converter or POE

MECHANICAL:

Antenna Ports:

One internal antenna, one external port RP-TNC female (connects to RP-TNC male)

Dimensions:

9.13 x 9 x 2 in (232 x 229 x 51 mm)

Weight:

2.2 lbs (997.9 g)

ENVIRONMENT:

IP Rating:

IP 53

Operating Temperature:

-20° to +70°C

APPLICATION INTERFACE:

Host API:

Java, .NET, Ruby APIs

Demo Software: Alien Gateway

Pls call (852) 2398-1908 or email to enquiry@insightHK.com for details

> Details <

Discounted Price: .

The Alien ALH-9011 Handheld RFID Reader is a high performance, easy to use, easy to manage, and easy to deploy reader.

Alien ALH 9011 Handheld RFID ReaderProduct code:ALH-9011

ELECTRICAL:

Air Interface Protocol:

EPCglobal UHF Class 1 Gen 2 (ISO 18000-6C)

Operating Frequency:

Global 860-960 MHz, region dependent

Antenna Type:

Circularly Polarized

Max Read Distance:

N/A

Scanner:

2D Barcode Imager

Operating System:

Windows Mobile 6.5

Data Interface:

Wi-Fi, Bluetooth, USB host & client

Memory:

256 MB RAM, 256 MB ROM

Expansion Memory:

1 Micro SD slot, 1 SIM slot

Power Source:

3,000 mAh lithium polymer battery

Camera:

3 mega-pixel fixed focus with flash

MECHANICAL:

Dimensions:

6.25 x 3.1 x 5.3 in (158.7 x 78.8 x 134.6 mm)

Weight:

1.42 lbs (644.1 g)

ENVIRONMENT:

IP Rating:

IP 65

Operating Temperature:

-10° to +50°C

APPLICATION INTERFACE:

Host API:

Visual Studio 2005 or 2008, .NET Compact Framework 2.0

Demo Software: RFID

Pls call (852) 2398-1908 or email to enquiry@insightHK.com for details
